Gemini-D5 RC10+SX-H694

System Specification

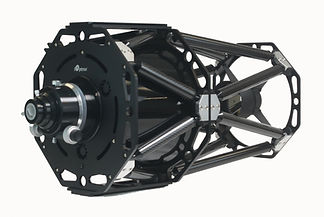

Main Scope :   GSO RC10
Diameter :   254mm, 10"
Focal Length :   2000mm
Focal Ratio :   f/8


Main Camera :   Starlight Xpress Trius-SX-694
Sensor :   Sony ICX694AQG
Size :   13.3x9.9mm
Bits :   16
Image Area :   12.5mm x 12.5mm
Pixels :   2750x2750, 7mp
Pixel Size :   4.54um
QE :   65%~77%
Read Noise :   ~3.5 e-
Fullwell Capacity :   >17k e-
Mono :   yes
Cooled :   yes
Δ Max. Cooling :   40°
CCD Angle :   n/a°


Using OAG :   yes


Guider Camera :   ASI 174MM
Sensor :   Sony IMX174
Bits :   12
Image Area :   11.3mm x 7.1mm
Pixels :   1936x1216, 2mp
Pixel Size :   5.86um
Mono :   yes
Cooled :   no


Filter LRGB :   Astrdon Gen2 E-Series LRGB
Filter NarrowBand :   Astrdon 5nm Ha


Auto Focuser :   Moonlite Focuser
Focus Position :   n/a


Mount :   Skywatcher EQ8
Mount Type :   German Equatorial
Drive Mode :   Stepper Motor Drive
Mount Weight :   25.7kg, 56.7lbs
Mount Payload :   50kg, 110.2lbs


Sys. FOV :   0.358° x 0.358°
Sys. Resolution :   0.468"/pixel



NO cellphone, address or credit card info needed.

Comments

Share Your ThoughtsBe the first to write a comment.
  • What's the difference between Customized Imaging Request and Image Data?
    The Image Data is sourced monthly from our remote telescope according to our Imaging Plan. We store and offer it at a minimal cost to anyone in need, helping us offset equipment and observatory expenses. However, the specific image data you're looking for might not always be available. If you need specific object data or longer exposures that our Image Data doesn't provide, or if you want exclusive data ownership, then our Customized Imaging Request is right for you.
  • How does this work?
    - Ownership: The data ownership is exclusively yours. After imaging completion, we will only share the data with you and will not offer it for sale. - Submit Your Requirements: Detail your imaging preferences with the form. Upon payment completion, our professionals will handle the imaging as per your needs. - Track Your Progress: Stay updated on your imaging requests via the "My/Imaging Request" page. - Secure Storage and Sharing: Your images will be securely stored on Google Drive and will be shared with your designated account. - Pricing: The charges for imaging requests are determined by multiplying the minute rate with the actual exposure time. Should weather or lunar phases affect the imaging, we'll reschedule accordingly. Remember: frames under a minute, like a 30-second exposure, are charged as one minute. - Cancellation & Refunds: Cancel anytime before imaging starts to get a full refund. If you cancel post-initiation, your refund equals the un-imaged duration times the per-minute rate. However, post-completion cancellations aren't entertained. Refund processing takes 3-5 business days, contingent on third-party processing times.
