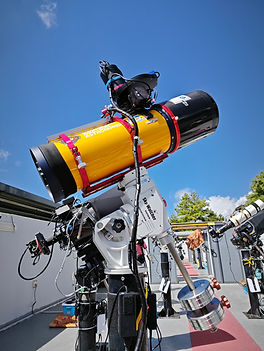

Gemini-A8 Takahashi e-160+QHY600

530mm FL with full frame CCD providing 3.892° FOV and 1.463"/pixel resolution.

  • Not for rental
  • Gemini Observatory

Contact US

  • +16693199590

    info@omiastro.com

System Specification

Main Scope :   Takahashi Epsilon 160
Diameter :   160mm, 6"
Focal Length :   530mm
Focal Ratio :   f/3.3


Main Camera :   QHY 600
Sensor :   Sony IMX455
Size :   Full Frame 36x24mm
Bits :   16
Image Area :   36.0mm x 24.0mm
Pixels :   9576x6388, 61mp
Pixel Size :   3.76um
QE :   ~90%
Read Noise :   1.0~3.7 e-
Fullwell Capacity :   >51k e-
Mono :   yes
Cooled :   yes
Δ Max. Cooling :   35°
CCD Angle :   n/a°


Using OAG :   yes


Guider Camera :   ASI 120mm Mini
Sensor :   AR0130CS
Bits :   12
Image Area :   4.8mm x 3.6mm
Pixels :   1280x960, 1mp
Pixel Size :   3.75um
Mono :   yes
Cooled :   no


FilterWheel Make :   QHY
F.W. Model :   QHY CFW-7
Filters Num. :   7
Filter LRGB :   Astrdon Gen2 E-Series LRGB
Filter NarrowBand :   Astrdon 5nm Ha


Auto Focuser :   Moonlite Focuser
Focus Position :   n/a


Mount :   Skywatcher AZEQ6 GT
Mount Type :   German Equatorial
Drive Mode :   Stepper Motor Drive
Mount Weight :   15.4kg, 34.0lbs
Mount Payload :   20kg, 44.1lbs


Sys. FOV :   3.892° x 2.597°
Sys. Resolution :   1.463"/pixel



Get 1000 OMI Points to redeem coupon, NO credit card needed during signup

Comments

Share Your ThoughtsBe the first to write a comment.
  • What's the difference between Customized Imaging Request and Image Data?
    The Image Data is sourced monthly from our remote telescope according to our Imaging Plan. We store and offer it at a minimal cost to anyone in need, helping us offset equipment and observatory expenses. However, the specific image data you're looking for might not always be available. If you need specific object data or longer exposures that our Image Data doesn't provide, or if you want exclusive data ownership, then our Customized Imaging Request is right for you.
  • How does this work?
    - Ownership: The data ownership is exclusively yours. After imaging completion, we will only share the data with you and will not offer it for sale. - Submit Your Requirements: Detail your imaging preferences with the form. Upon payment completion, our professionals will handle the imaging as per your needs. - Track Your Progress: Stay updated on your imaging requests via the "My/Imaging Request" page. - Secure Storage and Sharing: Your images will be securely stored on Google Drive and will be shared with your designated account. - Pricing: The charges for imaging requests are determined by multiplying the minute rate with the actual exposure time. Should weather or lunar phases affect the imaging, we'll reschedule accordingly. Remember: frames under a minute, like a 30-second exposure, are charged as one minute. - Cancellation & Refunds: Cancel anytime before imaging starts to get a full refund. If you cancel post-initiation, your refund equals the un-imaged duration times the per-minute rate. However, post-completion cancellations aren't entertained. Refund processing takes 3-5 business days, contingent on third-party processing times.
